：	AON6354
：	Single FETs, MOSFETs
：	Alpha and Omega Semiconductor, Inc.
：	MOSFET N-CHANNE
：	-
：	Tape & Reel (TR)
：	1

$0.7000

$0.6100

$6.1000

100

$0.4200

$42.0000

500

$0.3500

$175.0000

1000

$0.3000

$300.0000

3000

$0.2700

$810.0000

6000

$0.2500

$1,500.0000

9000

$0.2300

$2,070.0000

30000

$0.2300

$6,900.0000

Obtain quotation information

Product parameters

PDF(1)

PDF(2)

TYPE	DESCRIPTION
Mfr	Alpha and Omega Semiconductor, Inc.
Series	-
Package	Tape & Reel (TR)
Product Status	ACTIVE

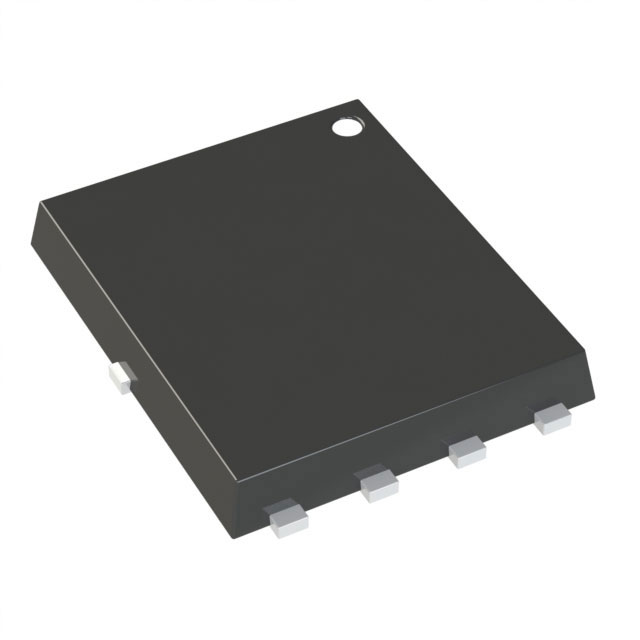

Package / Case	8-PowerSMD, Flat Leads
Mounting Type	Surface Mount
Operating Temperature	-55°C ~ 150°C (TJ)
Technology	MOSFET (Metal Oxide)
FET Type	N-Channel
Current - Continuous Drain (Id) @ 25°C	83A (Tc)
Rds On (Max) @ Id, Vgs	3.3mOhm @ 20A, 10V
Power Dissipation (Max)	36W (Tc)
Vgs(th) (Max) @ Id	2.2V @ 250µA
Supplier Device Package	8-DFN (5x6)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Vgs (Max)	±20V
Drain to Source Voltage (Vdss)	30 V
Gate Charge (Qg) (Max) @ Vgs	35 nC @ 10 V
Input Capacitance (Ciss) (Max) @ Vds	1330 pF @ 15 V
