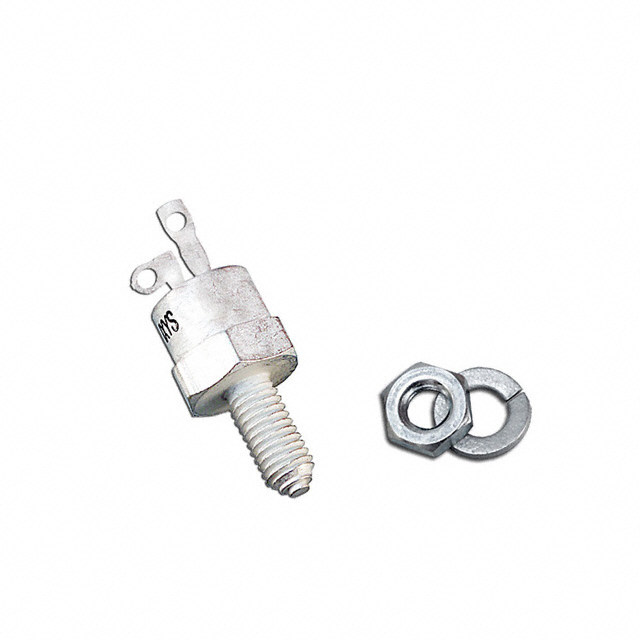

CS8-12IO2


：	CS8-12IO2
：	SCRs
：	Littelfuse / IXYS RF
：	SCR 1.2KV 25A T
：	-
：	Bulk
：

Product parameters

PDF(1)

TYPE	DESCRIPTION
Mfr	Littelfuse / IXYS RF
Series	-
Package	Bulk
Product Status	OBSOLETE
Package / Case	TO-208AB, TO-64-3, Stud
Mounting Type	Chassis, Stud Mount
SCR Type	Standard Recovery
Operating Temperature	-40°C ~ 125°C
Current - Hold (Ih) (Max)	80 mA
Current - Gate Trigger (Igt) (Max)	30 mA
Current - Non Rep. Surge 50, 60Hz (Itsm)	250A, 270A
Current - On State (It (AV)) (Max)	16 A
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - On State (Vtm) (Max)	1.6 V
Current - Off State (Max)	3 mA
Supplier Device Package	TO-64
Current - On State (It (RMS)) (Max)	25 A
Voltage - Off State	1.2 kV
